OEM SS Weld Studs M6X20 M6 Weld Stud Thread Bolts Customized

Ningbo Tigerlevel Plastic & Hardware Industrial Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap OEM SS Weld Studs M6X20 M6 Weld Stud Thread Bolts Customized from wholesalers

    Buy cheap OEM SS Weld Studs M6X20 M6 Weld Stud Thread Bolts Customized from wholesalers
    • Buy cheap OEM SS Weld Studs M6X20 M6 Weld Stud Thread Bolts Customized from wholesalers
    • Buy cheap OEM SS Weld Studs M6X20 M6 Weld Stud Thread Bolts Customized from wholesalers

    OEM SS Weld Studs M6X20 M6 Weld Stud Thread Bolts Customized

    Ask Lasest Price
    Brand Name : N/M
    Model Number : SS123
    Certification : ISO 9001
    Price : 0.1-100USD
    Payment Terms : T/T
    Supply Ability : 500000pcs per month
    Delivery Time : 3-10DAYS
    • Product Details
    • Company Profile

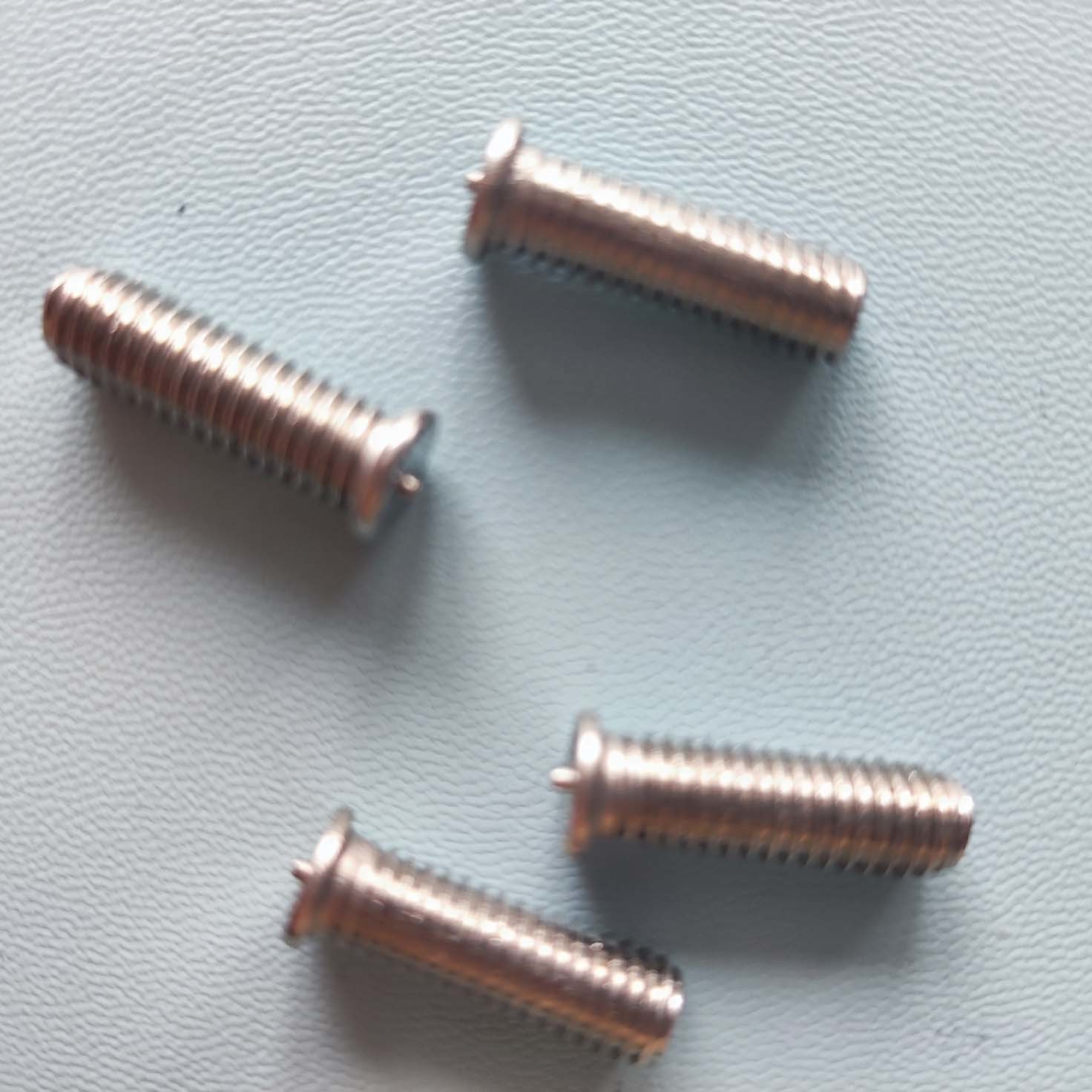

    OEM SS Weld Studs M6X20 M6 Weld Stud Thread Bolts Customized

    stainless steel ACR welding studs /welded studs

    size M6x20


    MaterialSteel/Alloy/Bronze/Iron/ Carbon steel/etc
    Grade4.8/ 6.8 /8.8 /10.9 /12.9
    specificationM0.8-M12 or 0#-1/2" and we also produce according to customer's requirement
    StandardISO,,DIN,JIS,ANSI/ASME,BS/Q
    Lead time10-15 working days as usual,It will based on the detailed order quantity
    CertificateISO14001:2004/ISO9001:2008/ ISO/TS16949:2009
    ColorWe can provide customized services according to your needs
    Surface TreatmentWe can provide customized services according to your needs

    OEM SS Weld Studs M6X20 M6 Weld Stud Thread Bolts CustomizedOEM SS Weld Studs M6X20 M6 Weld Stud Thread Bolts Customized



    stud Welding is a general term for joining a metal stud, or similar part, to a work piece. Welding can be done by a number of welding processes including ARC, Resistance, Friction and Percussion. Of these processes, STUD ARC WELDING utilizes equipment and techniques unique to stud welding. The other processes use conventionally designed equipment with special tooling.

    Mild steel, stainless steel and aluminum are applicable materials for Arc Welding.
    1: A fastener and ceramic ferrule are firmly placed against the work surface under spring tension.
    2: Upon triggering, the weld gun automatically lifts the fastener from the base metal and initiates a controlled electric arc - which melts the end of the fastener and a portion of the base metal.
    3: A ceramic arc shield concentrates the heat and retains the molten material in the weld area for maximum weld strength and reliability.
    4: At the precise moment the fastener and the parent metal become molten, the fastener is automatically plunged into the work surface. The metal solidifies and a high quality fusion weld is completed.


    Drilling & Tapping
    These processes are very slow. Thicker parent material is required, as are longer studs.

    Inserts
    Can eventually work loose. They can also crack paint and leave unsightly stains. Holes need to be punched and deburred in parent material. The reverse side is not always clean and flat. The parent material is weakened by the holes.

    Back Welding
    The process is slow. Holes need to be punched and deburred in parent material. The excess weld needs grinding off, for a clean, flat finish. The parent material is weakened by the holes.

    Through Bolting
    Requires two handed assembly and access from both sides. Holes need to be punched and deburred in parent material. Bolt heads are unsightly and stains can come from the bolt holes. The assembly is not leak-proof and the parent material is weakened by the presence of the holes.
