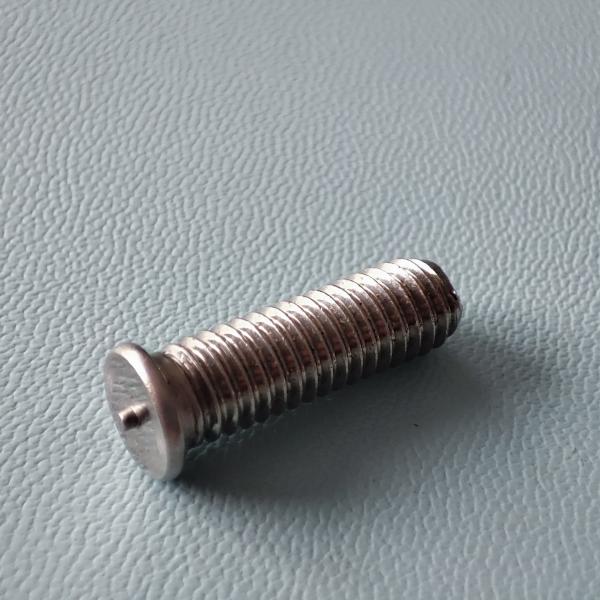

stainless steel ACR welding studs /welded studs

size M6x20

Mild steel, stainless steel and aluminum are applicable materials for Arc Welding.
1: A fastener and ceramic ferrule are firmly placed against the work surface under spring tension.
2: Upon triggering, the weld gun automatically lifts the fastener from the base metal and initiates a controlled electric arc - which melts the end of the fastener and a portion of the base metal.
3: A ceramic arc shield concentrates the heat and retains the molten material in the weld area for maximum weld strength and reliability.
4: At the precise moment the fastener and the parent metal become molten, the fastener is automatically plunged into the work surface. The metal solidifies and a high quality fusion weld is completed.

HOW STUD WELDING WORKS.

Process. The process involves an arc being ignited, between the face of the stud, and the surface of the work piece. Once both parts are melted, the stud is smoothly pressed against the work piece and joined together. Welding elements like threaded studs, pins, tapped pads, etc. are welded by an arc without additional material being required. As the stud is joined with the work piece over the whole surface of the stud, the strength of the joint is even higher than the base material or the stud.

Did you ever wonder why stud welding was invented?
Here are some of the reasons why the technology was created:


Through Bolting
Requires two handed assembly and access from both sides. Holes need to be punched and deburred in parent material. Bolt heads are unsightly and stains can come from the bolt holes. The assembly is not leak-proof and the parent material is weakened by the presence of the holes.

FAQ

1.Can I order a small list ?

---Of course,you can.

2.Can you provide some sample?

---Samples can be provided as your requirements.

3.How to ensure that every process's quality?

---Every process will be checked by our quality inspection department

which insures every product's quality.

4.Do you have after-sales service?

---Certainly,you can contact us at any time.

Ningbo Tigerlevel Plastic &Hardware Industrial Co.,Ltd

Is located in Ningbo City ,Zhejiang Province ,China where have very convenient transpotation by sea ,air and trucks. Our main products range are including plastic and metal spares for furniture hardware and electric accessories .Such as adjustable feet ,furniture foot caps ,glides , cage nuts ,plastic screw and nuts ,nylon rivet ,adhesive sticky pad ,isolation distance bolts etc .we can products almost all kinds of plastic and metal parts as per customer’s special request .

We occupy 60000square kilometers workeshops and more than 300 employees .and we have 8 production lines which can satisfy with customer’s urgent request ,we have get the ISO9001 and BSCI certification to make sure the quality of our products and offer the safty and qualified products to all user.

Tigerlevel would like to build win-win cooperation with all of you !

Welcome to visit us !
