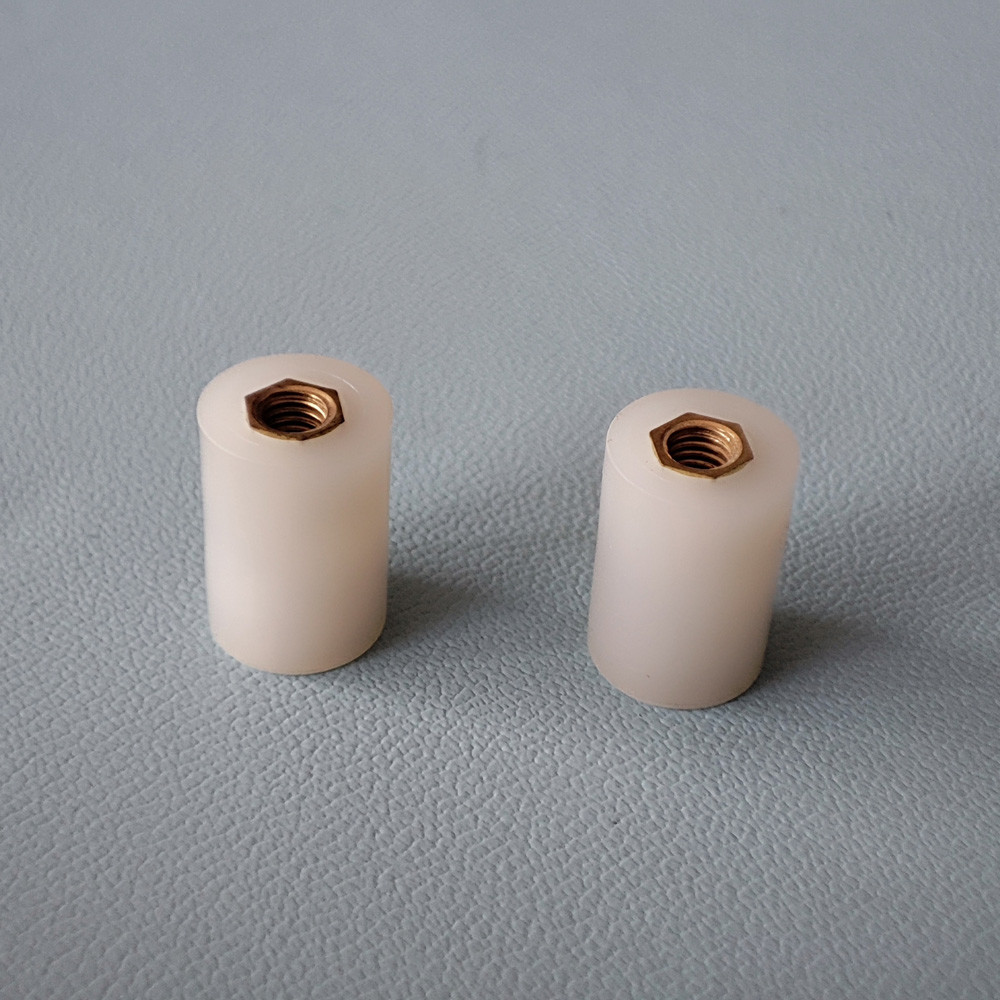

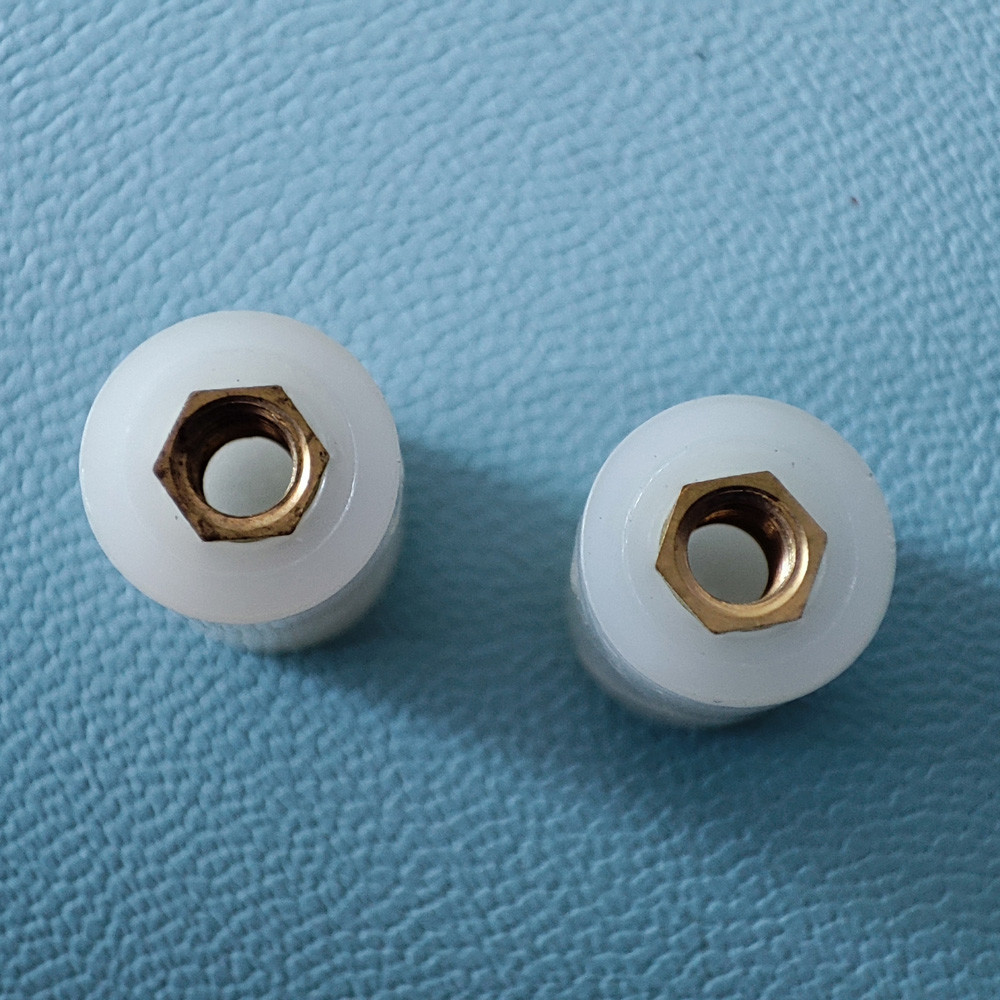

Nylon Standoff PCB Motherboard Hex Hexagon Spacer

Round Nylon Pillar ,isolation distance bolt ,standoffs /spacers female to female

• Material: Body – Nylon 66 (natural), Inserts – Brass (self colour).
• Operating temperature: -40ºC to +85ºC.
• P.T.F.E. available for temperatures up to 250°C.
• Flammability ratings on application.
• All dimensions in millimetres.
• RoHS compliant.

Material : PA66+Brass

color : Nature

Size :M3X8-10MM LENGTH

fire-protection rating:ULL94V-2

Suitable tempreture:-40-85degree

thread size accepte: M2, M2.5 ,M3,M4,M5,M6,M8,M10

We have a vast range of standard nylon pillars. However, we can manufacture specials, at very competitive prices, to meet your requirements.

We provide a wide range on cable tie, spacer, Rubber foot, Nylon rivets, Screws and nuts, Wiring products, Cable gland, Cable clip, Shrinkable tube, terminal blocks, a variety of standard and non-standard metal parts, all kinds of switches and anti-static products, and so on.

Production process include molding injection, PVC coating, material includes NYLON, ABS, PC, PVC, PE, TPE, NBR, rubber, copper, stainless steel and others. Most are providing different flame retardant grade products

more type for choose

QC:

we always use gague to check the nut to make sure all the size of isolation distance bolts are correct.

package : corrugated box +pallet

we accept customized and much more size for choose .

Part No. Thread L W A B Image M2.5-15 M2.5 15.0 6.4 6.0 6.0 M3-15 M3 5.6 5.6 M3-70 70.0 M4-25 M4 25.0 8.0 6.4 6.4 M4-55 55.0 M5-55 M5 55.0 9.5 10.0 10.0 M6-45 M6 45.0 12.7 13.0 13.0 M6-120 120.0 6.8 6.8

Ningbo Tigerlevel Plastic &Hardware Industrial Co.,Ltd

Is located in Ningbo City ,Zhejiang Province ,China where have very convenient transpotation by sea ,air and trucks. Our main products range are including plastic and metal spares for furniture hardware and electric accessories .Such as adjustable feet ,furniture foot caps ,glides , cage nuts ,plastic screw and nuts ,nylon rivet ,adhesive sticky pad ,isolation distance bolts etc .we can products almost all kinds of plastic and metal parts as per customer’s special request .

We occupy 60000square kilometers workeshops and more than 300 employees .and we have 8 production lines which can satisfy with customer’s urgent request ,we have get the ISO9001 and BSCI certification to make sure the quality of our products and offer the safty and qualified products to all user.

Tigerlevel would like to build win-win cooperation with all of you !

Welcome to visit us !
